Differential Splicing Analysis with pylimma (pasilla dataset)
This tutorial walks through a differential splicing workflow - testing which exons are differentially used between conditions while accounting for overall gene-level expression. The underlying test is a per-exon interaction evaluated via diff_splice.
R-parity validation: the sibling notebook `pasilla_R_vs_Python.ipynb <pasilla_R_vs_Python.ipynb>`__ runs R limma 3.66.0 on the same input and compares the outputs numerically.
Dataset
Brooks et al. 2011, Genome Research 21:193-202: Drosophila melanogaster S2 cells with RNAi knockdown of the splicing regulator pasilla (Ps) vs untreated controls. The shipped subset is the exon-level count matrix from the pasilla Bioconductor package.
Pipeline
Differential splicing differs from the standard DE workflow:
Input: exon-level counts (not gene-level).
Output:
diff_splice+top_splicereplaceeBayes+top_table.
Steps:
Load exon counts + metadata
Library-size QC
log-count density (KDE, per sample)
log2 transform
Design matrix
Fit per-exon linear models
diff_splice+top_spliceTop-ranked gene’s exon-level logFC
Summary
[1]:
import sys
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
REPO = Path.cwd().resolve().parents[1]
sys.path.insert(0, str(REPO))
sys.path.insert(0, str(REPO / 'data'))
import generate_data as gd
import pylimma
pd.set_option('display.width', 120)
pd.set_option('display.max_columns', 10)
# Shared plotting helpers used by every tutorial.
def _log_cpm(mat, lib_size):
cpm = mat.div(lib_size, axis=1) * 1e6 if hasattr(mat, 'div') \
else (mat / lib_size) * 1e6
return np.log2(cpm + 1e-2)
def plot_log_cpm_density(mat, ax, title=""):
'''Kernel-smoothed log-CPM density, one line per sample.
Matches edgeR/limma's standard density plot (limma User's Guide
Figure 15.1): a Gaussian KDE per sample drawn on a shared grid.
'''
from scipy.stats import gaussian_kde
arr = mat.values if hasattr(mat, 'values') else np.asarray(mat)
# Shared evaluation grid spanning the combined range.
lo, hi = np.nanmin(arr), np.nanmax(arr)
grid = np.linspace(lo, hi, 200)
for j in range(arr.shape[1]):
col = arr[:, j]
col = col[np.isfinite(col)]
if col.size < 2:
continue
kde = gaussian_kde(col)
ax.plot(grid, kde(grid), linewidth=0.8, alpha=0.7)
ax.set_xlabel('log2 CPM')
ax.set_ylabel('Density')
ax.set_title(title)
def mds_coords(mat, top=500):
'''Pairwise leading-logFC MDS, matching R limma's plotMDS.default.
Returns the (n_samples, ndim) coordinate matrix and the percent of
variance explained per dimension. We reuse pylimma's private
_mds_coordinates for consistency with plot_mds().
'''
from pylimma.plotting import _mds_coordinates
r = _mds_coordinates(np.asarray(mat, dtype=np.float64), top=top,
gene_selection='pairwise', ndim=2)
lam = np.maximum(r['eigen_values'], 0.0)
coords = r['eigen_vectors'] * np.sqrt(lam)
return coords, r['var_explained']
def plot_mds_coloured(mat, groups, ax, top=500, title='MDS'):
'''MDS scatter plot coloured by sample group.'''
coords, var_exp = mds_coords(mat, top=top)
pct = np.round(var_exp * 100).astype(int)
groups = np.asarray(groups)
levels = sorted(pd.unique(groups))
palette = plt.get_cmap('tab10').colors
for k, level in enumerate(levels):
m = groups == level
ax.scatter(coords[m, 0], coords[m, 1],
s=55, color=palette[k % len(palette)],
label=str(level), edgecolor='k', linewidth=0.3)
ax.axhline(0, color='grey', linewidth=0.4, linestyle=':')
ax.axvline(0, color='grey', linewidth=0.4, linestyle=':')
ax.set_xlabel(f'Leading logFC dim 1 ({pct[0]}%)')
ax.set_ylabel(f'Leading logFC dim 2 ({pct[1]}%)')
ax.set_title(title)
ax.legend(fontsize=8, frameon=False)
def plot_heatmap(E, groups, fit, n_top=50, ax=None):
'''Heatmap of top-n DE rows showing BOTH directions.
Picks the top n/2 genes with the most positive t and the top n/2
with the most negative t (by smallest p within each side), then
stacks them - up-regulated in the contrast at top, down-regulated
at bottom. Row z-scored.'''
t = np.asarray(fit['t']).ravel()
p = np.asarray(fit['p_value']).ravel()
half = n_top // 2
up_pool = np.where(t > 0)[0]
down_pool = np.where(t < 0)[0]
top_up = up_pool[np.argsort(p[up_pool])[:half]]
top_down = down_pool[np.argsort(p[down_pool])[:n_top - half]]
# Sort each block by signed t descending so most-up is top and
# most-down is bottom.
top_up = top_up[np.argsort(-t[top_up])]
top_down = top_down[np.argsort(-t[top_down])]
ordered = np.concatenate([top_up, top_down])
mat = E[ordered]
col_order = np.argsort(groups)
mat_sorted = mat[:, col_order]
z = (mat_sorted - mat_sorted.mean(axis=1, keepdims=True)) / \
(mat_sorted.std(axis=1, keepdims=True) + 1e-8)
if ax is None:
fig, ax = plt.subplots(figsize=(9, 8))
im = ax.imshow(z, aspect='auto', cmap='RdBu_r', vmin=-2, vmax=2)
ax.set_xticks(range(len(col_order)))
ax.set_xticklabels(np.asarray(groups)[col_order], rotation=90, fontsize=6)
ax.set_yticks([])
ax.set_title(f'Top {n_top} DE genes (top {half} up + top {n_top - half} down; row z-scored)')
return ax, im, ordered
1. Load exon counts and sample metadata
[2]:
data = gd.load_pasilla()
counts = data['counts']
targets = data['targets']
print(f"exon counts: {counts.shape} (exons x samples)")
print(targets[['condition', 'type']])
exon counts: (14599, 7) (exons x samples)
condition type
untreated1 untreated single-read
untreated2 untreated single-read
untreated3 untreated paired-end
untreated4 untreated paired-end
treated1 treated single-read
treated2 treated paired-end
treated3 treated paired-end
2. Library sizes
[3]:

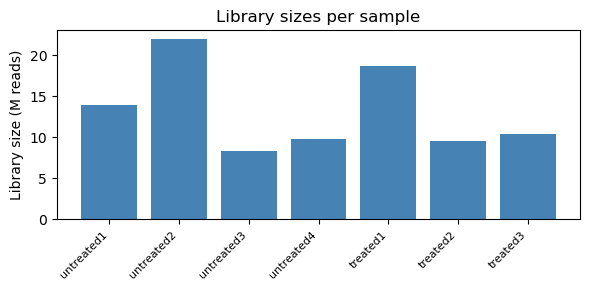

lib = counts.sum(axis=0)
fig, ax = plt.subplots(figsize=(6, 3))
ax.bar(range(len(lib)), lib.values / 1e6, color='steelblue')
ax.set_xticks(range(len(lib)))
ax.set_xticklabels(counts.columns, rotation=45, ha='right', fontsize=8)
ax.set_ylabel('Library size (M reads)')
ax.set_title('Library sizes per sample')
fig.tight_layout()
plt.show()
3. log-count density (KDE)
[4]:

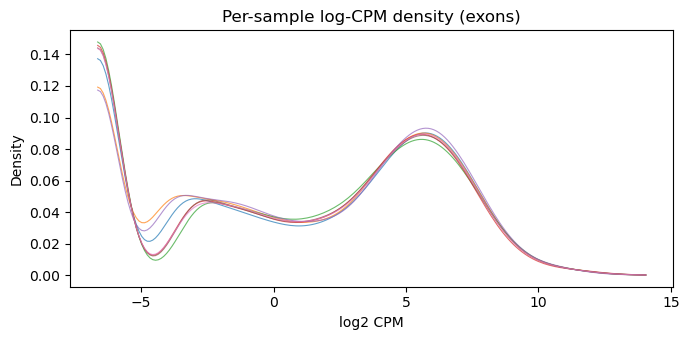

lc = _log_cpm(counts, lib)
fig, ax = plt.subplots(figsize=(7, 3.5))
plot_log_cpm_density(lc, ax, 'Per-sample log-CPM density (exons)')
fig.tight_layout()
plt.show()
4. log2 transform
For differential splicing, limma treats log-transformed exon counts as a microarray-style matrix. voom is not used here; the mean-variance trend is captured implicitly by the per-exon linear model.
[5]:
log2_counts = np.log2(counts.values.astype(float) + 1)
print(f"log2_counts range: [{log2_counts.min():.2f}, {log2_counts.max():.2f}]")
log2_counts range: [0.00, 18.46]
5. Design matrix
[6]:
design, C = gd.build_two_group_design(targets['condition'])
design_df = pd.DataFrame(design, index=counts.columns,
columns=sorted(targets['condition'].unique()))
print(design_df)
print(f"\nContrast vector: {C.ravel()} (treated - control)")
treated untreated
untreated1 0.0 1.0
untreated2 0.0 1.0
untreated3 0.0 1.0
untreated4 0.0 1.0
treated1 1.0 0.0
treated2 1.0 0.0
treated3 1.0 0.0
Contrast vector: [-1. 1.] (treated - control)
6. Fit per-exon linear models
[7]:
fit = pylimma.lm_fit(log2_counts, design)
print(f"coefficients shape: {fit['coefficients'].shape}")
/Users/John/miniconda3/lib/python3.11/site-packages/h5py/__init__.py:36: UserWarning: h5py is running against HDF5 1.14.3 when it was built against 1.14.2, this may cause problems
_warn(("h5py is running against HDF5 {0} when it was built against {1}, "
coefficients shape: (14599, 2)
7. e_bayes + diff_splice + top_splice
The shipped exon matrix has no explicit gene annotation, so we simulate a simple geneid grouping: five consecutive exons per “gene”. Real analyses would use a GTF-derived grouping.
[8]:
fit = pylimma.e_bayes(fit)
geneid = (np.arange(counts.shape[0]) // 5).astype(str)
ds = pylimma.diff_splice(fit, geneid=geneid)
ts = pylimma.top_splice(ds, number=np.inf, sort_by='p')
print(f"top_splice output: {ts.shape}, columns: {list(ts.columns)}")
ts.head(10)
top_splice output: (2920, 5), columns: ['GeneID', 'NExons', 'F', 'P.Value', 'FDR']
/Users/John/Documents/Projects/staged/pylimma/pylimma/pylimma/squeeze_var.py:396: UserWarning: Zero sample variances detected, have been offset away from zero
warnings.warn("Zero sample variances detected, have been offset away from zero")
/var/folders/0x/4309q_jn5xbf3zzq_4hcp2100000gn/T/ipykernel_99389/895928089.py:4: UserWarning: diff_splice: 14599 exons, 2920 genes, 0 with 1 exon, mean 5 exons/gene, max 5
ds = pylimma.diff_splice(fit, geneid=geneid)
[8]:
| GeneID | NExons | F | P.Value | FDR | |
|---|---|---|---|---|---|
| 0 | 85 | 5 | 2583.673589 | 1.883358e-34 | 5.499406e-31 |
| 1 | 1195 | 5 | 2013.896455 | 5.383258e-33 | 7.859557e-30 |
| 2 | 2847 | 5 | 1940.547358 | 8.867099e-33 | 8.630643e-30 |
| 3 | 2338 | 5 | 1809.610233 | 2.268798e-32 | 1.656223e-29 |
| 4 | 2158 | 5 | 1370.151358 | 9.536298e-31 | 5.569198e-28 |
| 5 | 301 | 5 | 1339.796840 | 1.288355e-30 | 6.269993e-28 |
| 6 | 2462 | 5 | 1265.720229 | 2.764835e-30 | 1.153331e-27 |
| 7 | 883 | 5 | 992.929347 | 7.173435e-29 | 2.618304e-26 |
| 8 | 2794 | 5 | 954.707733 | 1.213902e-28 | 3.938439e-26 |
| 9 | 178 | 5 | 944.913253 | 1.393761e-28 | 3.976064e-26 |
8. Top-ranked gene’s exon-level fold changes
A gene with differential splicing shows some exons strongly up-regulated while others are flat or down - a relative shift rather than a uniform one.
[9]:

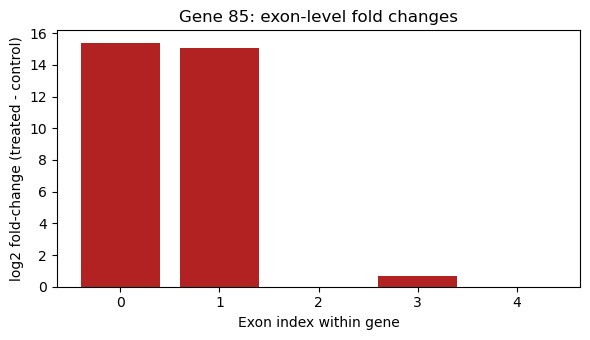

top_gene = str(ts.iloc[0]['GeneID'])
gene_mask = (geneid == top_gene)
exon_fc = fit['coefficients'][gene_mask, 0]
print(f"Top gene: {top_gene} (exons in gene: {gene_mask.sum()})")
fig, ax = plt.subplots(figsize=(6, 3.5))
ax.bar(range(len(exon_fc)), exon_fc,
color=np.where(exon_fc > 0, 'firebrick', 'steelblue'))
ax.axhline(0, color='k', linewidth=0.5)
ax.set_xlabel('Exon index within gene')
ax.set_ylabel('log2 fold-change (treated - control)')
ax.set_title(f'Gene {top_gene}: exon-level fold changes')
fig.tight_layout()
plt.show()
Top gene: 85 (exons in gene: 5)
